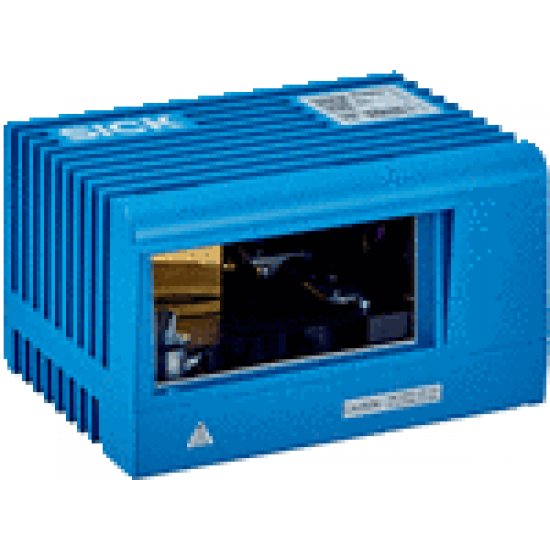

LMS400-1000

The SICK LMS400-1000 is a high-performance laser measurement sensor designed for precise distance measurement and object detection in various industrial applications. It operates using laser triangulation technology, providing accurate and reliable data even in challenging environments.### Key Technical Specifications: - **Measurement Range:** 0.1 m to 100 m - **Resolution:** 1 mm - **Accuracy:** ± 10 mm (depending on the measurement range) - **Laser Class:** Class 2 (eye-safe) - **Wavelength:** 670 nm (visible red laser) - **Field of View:** 90° - **Scanning Frequency:** Up to 50 Hz - **Output Interfaces:** Ethernet, RS-232, and digital I/O - **Power Supply:** 24 V DC ± 20% - **Power Consumption:** < 5 W - **Operating Temperature Range:** -20 °C to +50 °C - **Protection Rating:** IP67 (dust-tight and protected against water)### Features: - **Multi-echo Technology:** Capable of detecting multiple echoes from a single laser pulse, allowing for reliable detection of objects in cluttered environments. - **Configurable Measurement Modes:** Supports various measurement modes including distance, height, and volume measurement. - **Robust Design:** Built to withstand harsh industrial conditions, with a rugged housing and high ingress protection. - **User-friendly Interface:** Easy configuration and monitoring through SICK's SOPAS software, enabling quick setup and adjustments.### Applications: The LMS400-1000 is ideal for applications such as: - Material handling and logistics - Warehouse automation - Object detection and tracking - Level measurement in silos and tanks - Safety applications in automated guided vehicles (AGVs) and robotics.
